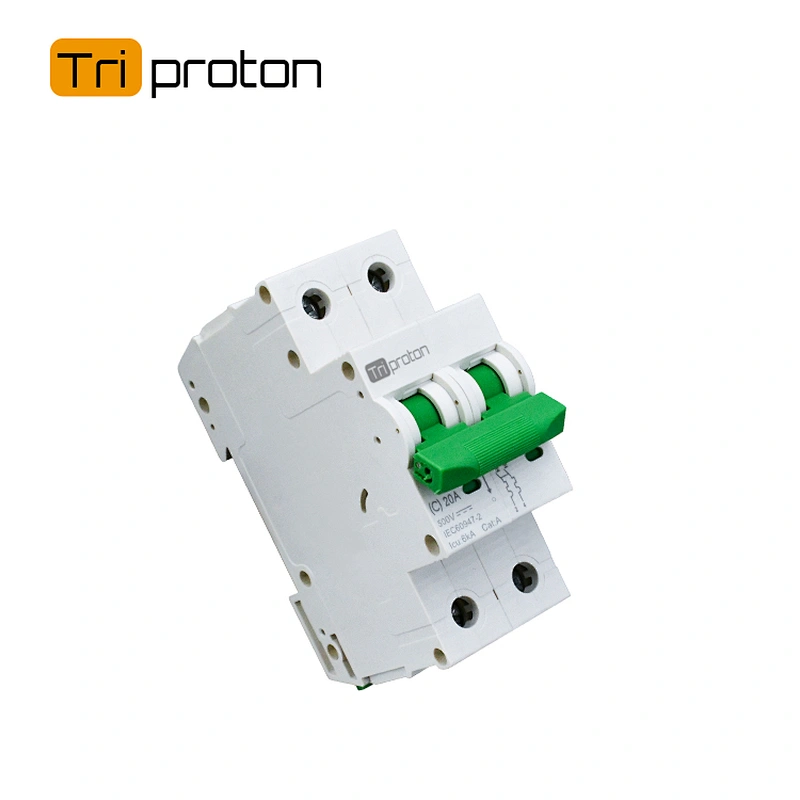

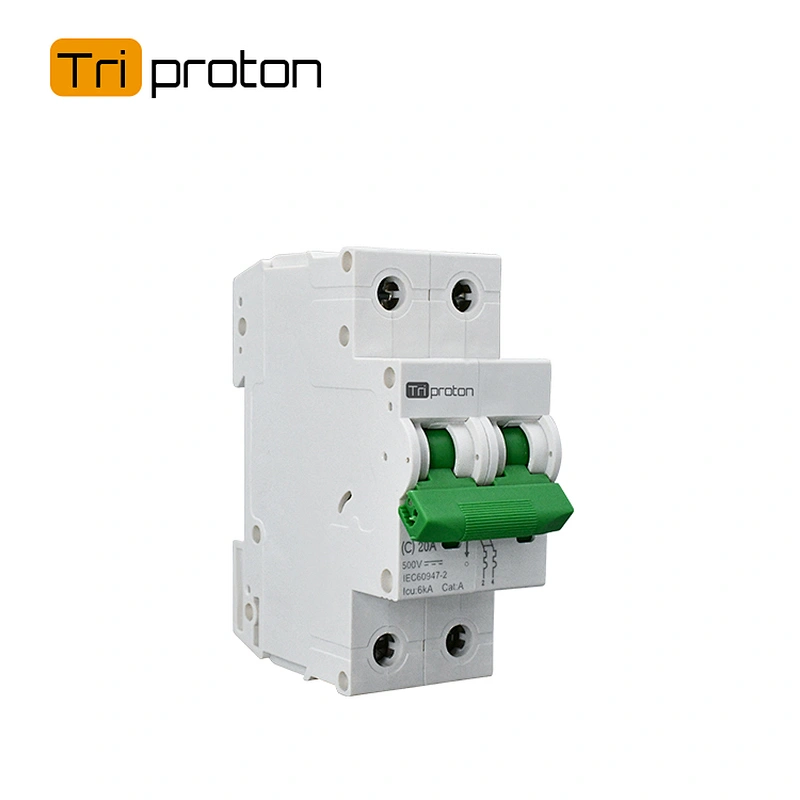

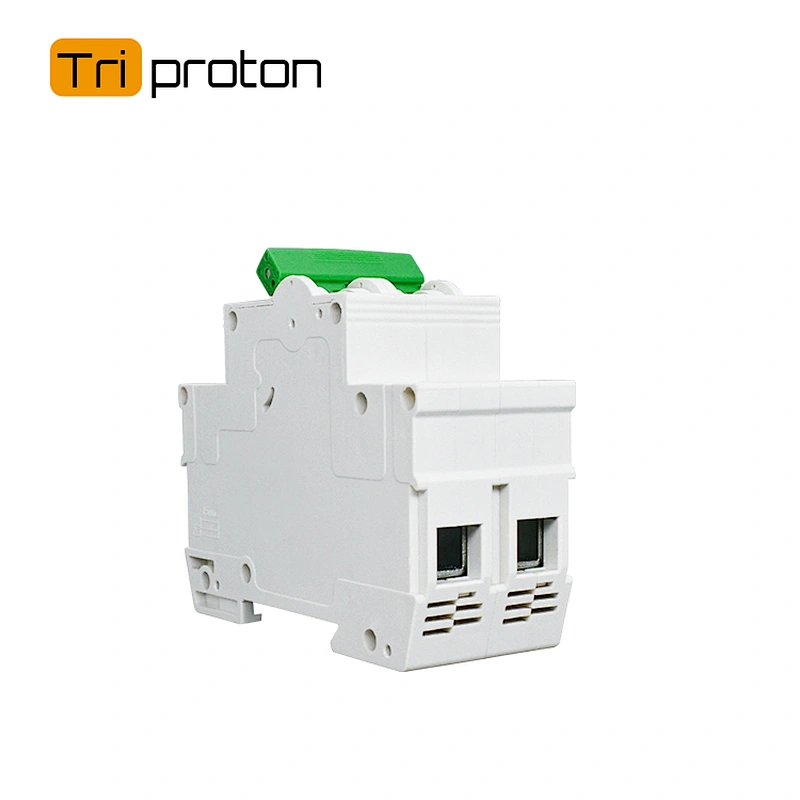

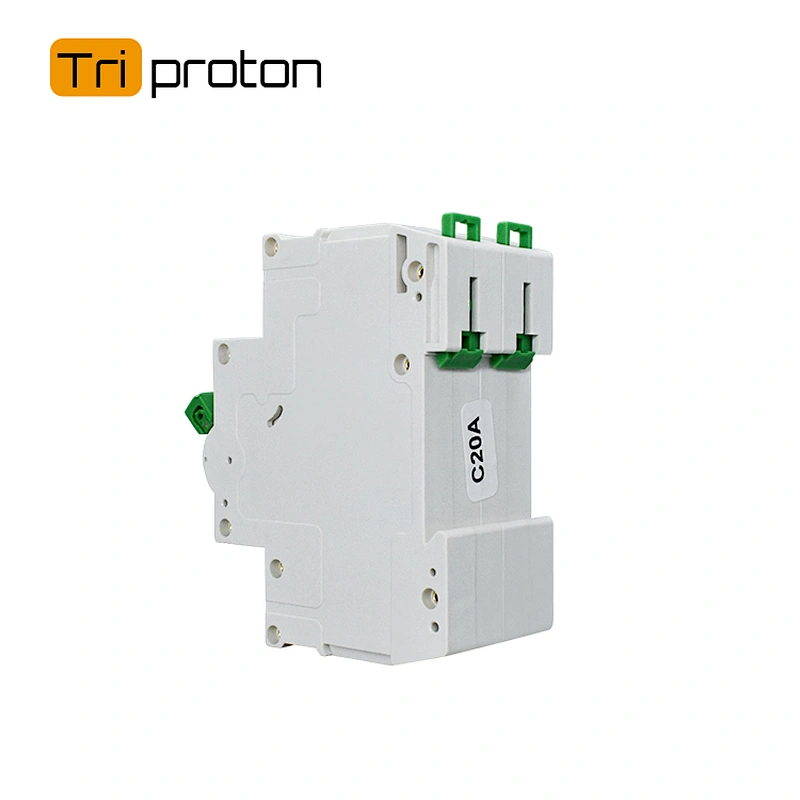

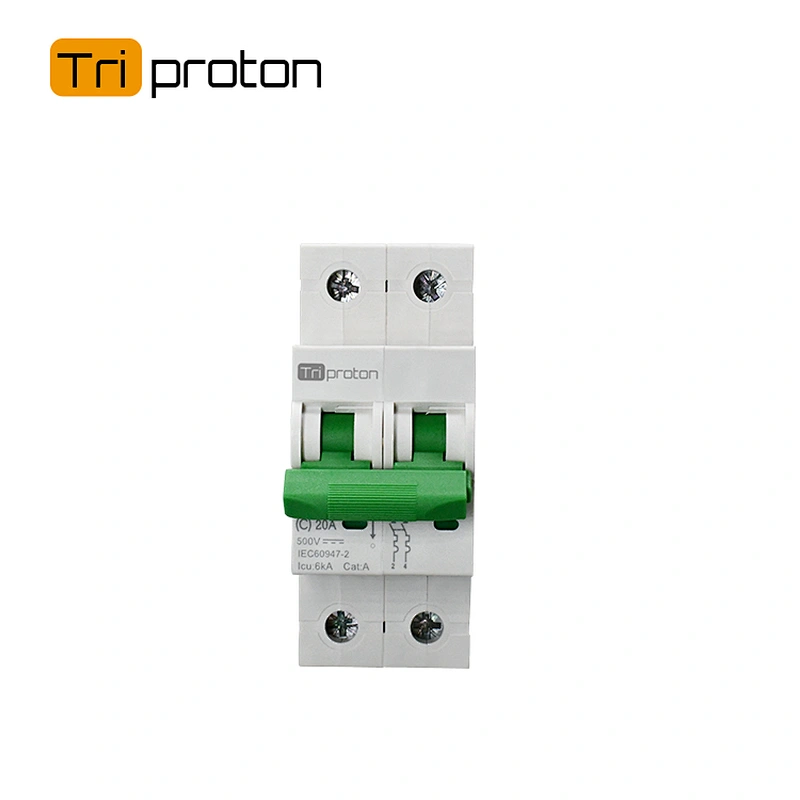

Main features:
- Protection Functions: overload, short circuit
- Rated short circuit breaking capacity Icu up to 6 kA
- Non-polarity, Easy wiring
- Rated Current In up to 63A
- Rated Voltage Ue up to 1000V
- Designed for PV, energy storage and other DC applications
- TUV, CE, CB, SAA, EN 60947-2, AS/NZS IEC 60947.2: 2015
- Pole: 1P, 2P, 3P, 4P

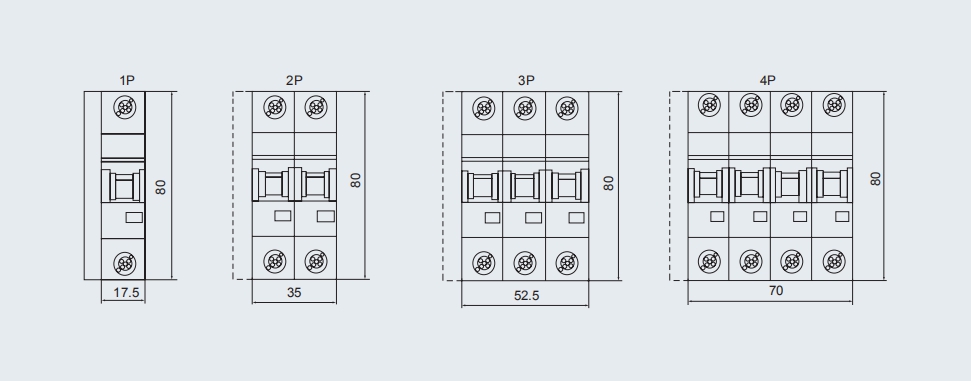

Technical Data

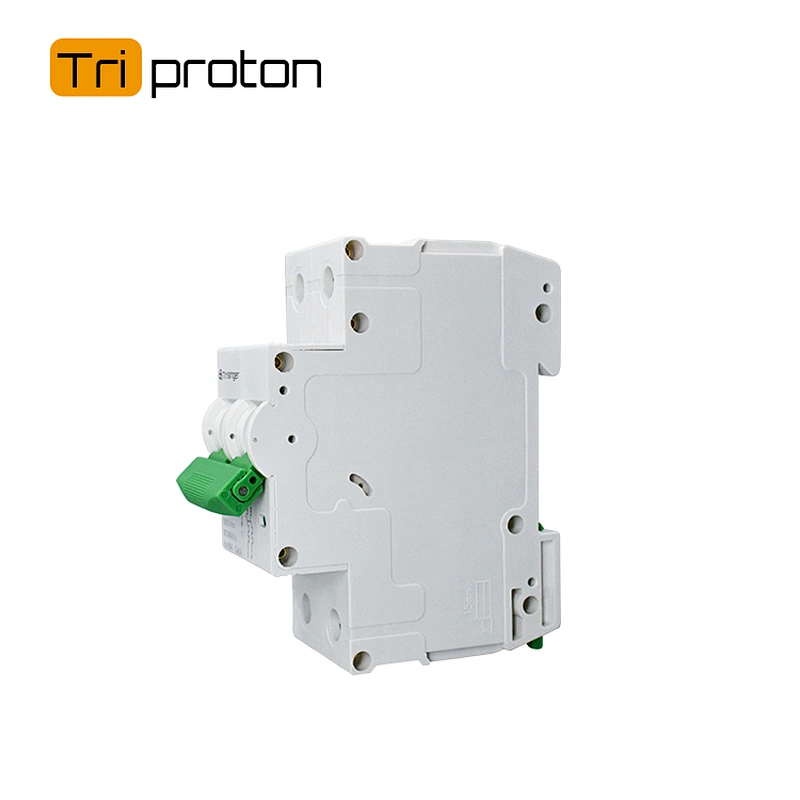

SL7N PV Series Circuit Breaker | SL7N-63 | |||
Frame degree rated current (A) | 63A | |||
Ue Rated operating voltage (V DC) | DC 550V | |||
Rated Current In (A) | 6-10-16-20-25-32-40-50-63 | |||
Rated insulation voltage Ui (V DC) | 2P: 800V 4P:1200V | |||
Rated Impact voltage Uimp (kV) | 4 | |||
Ultimate breaking capacity lcu (kA) | 6 | |||
Run breaking capacity lcs (%lcu) | 75% | |||
Curve type | C | |||
Trip type | Thermal-magnetic | |||
MECHANICAL | 20000 | |||
8500 | ||||
ELECTRIC | 2500 | |||
1500 | ||||
Shunt release (SHT) | Option | |||
Undervoltage release (UNT) | ||||
Auxiliary contact (AX) | ||||
Alarm contact (AL) | ||||
Wiring capacity (mm²) | In≤32A,1∼25mm²,1≥40A,10∼35mm² | |||
Ambient temperature (℃) | -20∼70 | |||
Altitude | ≤2000 | |||
Relative humidity | ≤95% | |||
Pollution Level | 3 | |||
Installation Environment | No obvious shock and vibration | |||
Installation category | Class lll | |||
Installation | DIN Standard rail | |||
