Advantages of PV Inline Fuse Holder:
- Compatible solar connector
- Simple on-site processing
- Accomodates different specifications of the FUSE.
- Fuse can be replaced.
- Protection class IP68 ensures connection security.
- High current carrying capacity
- Patent product
|
Technicale Data:
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
Rated current: | 1A~30A (According to the fuse) | Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <1mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6/10mm2, 14/12/10/8AWG |
Wechat scan code or copy link mobile phone open
X

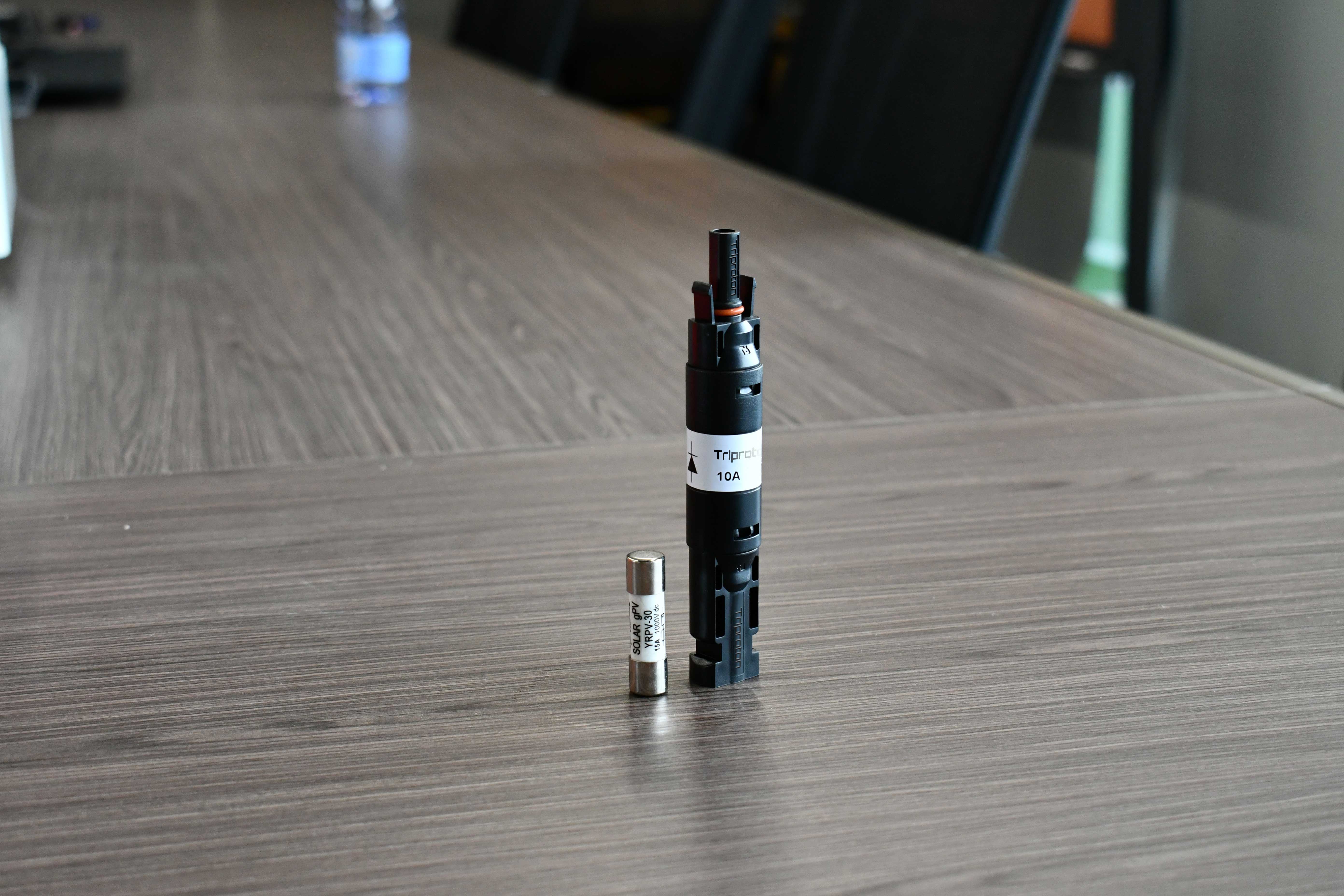

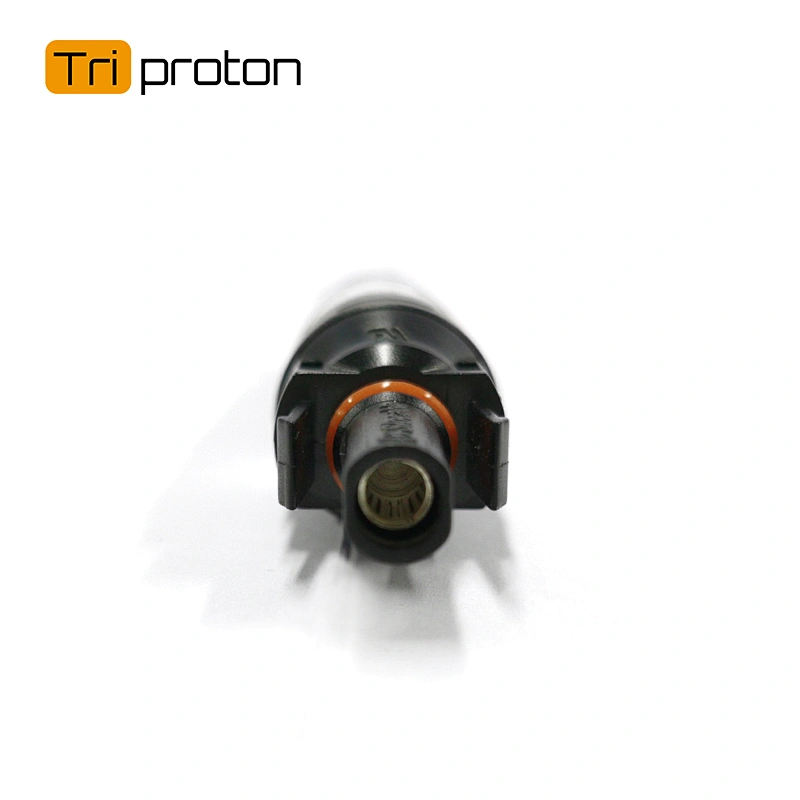

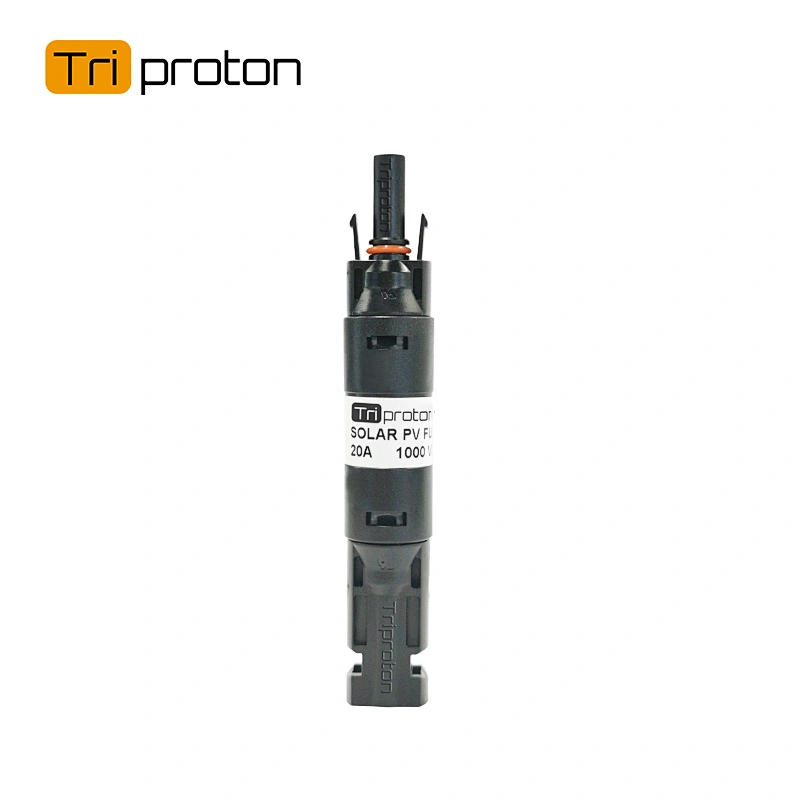

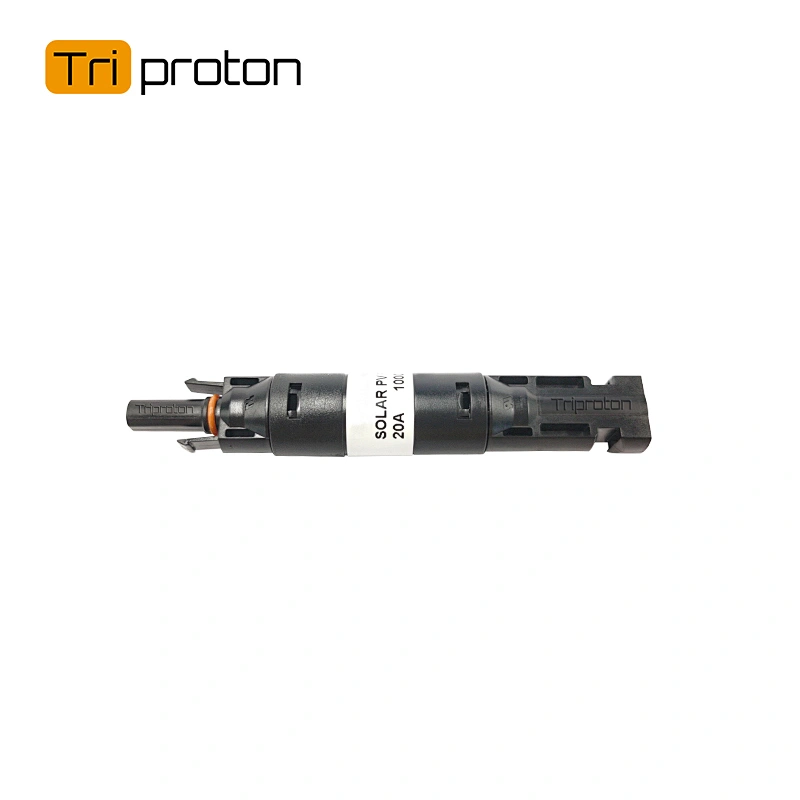

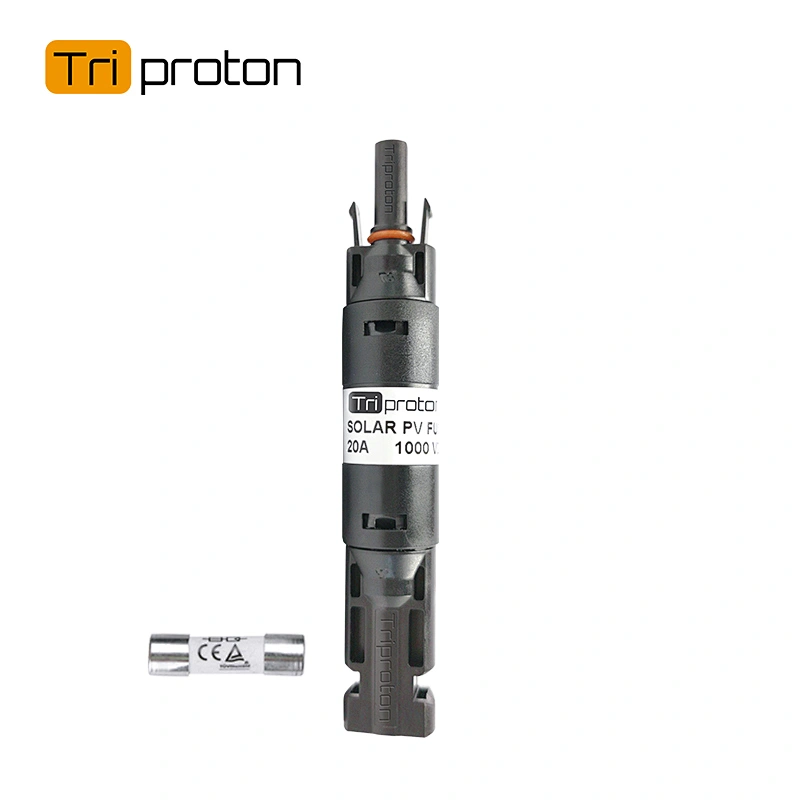

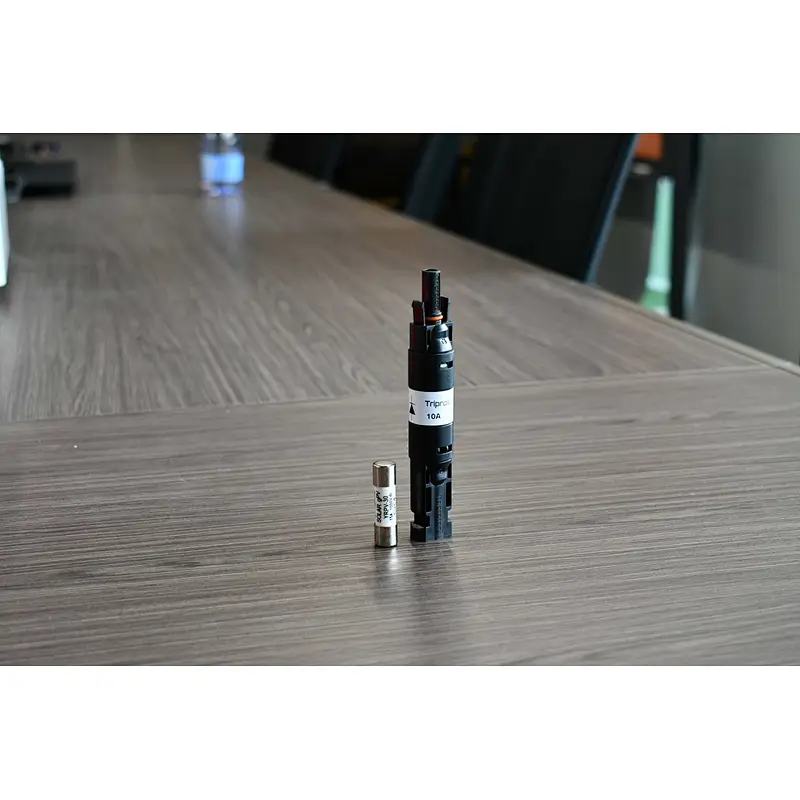

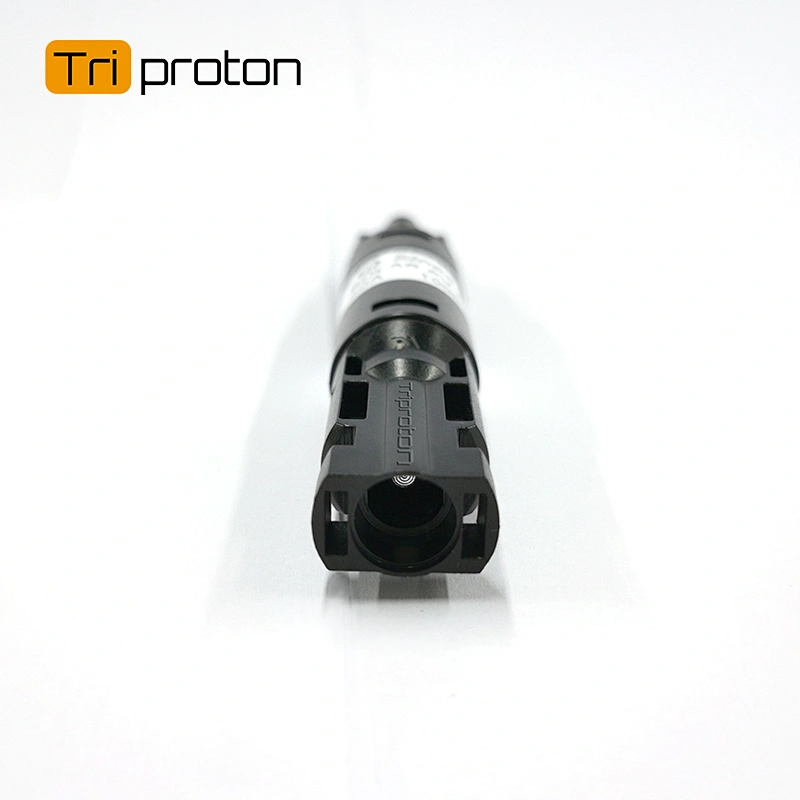

DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
